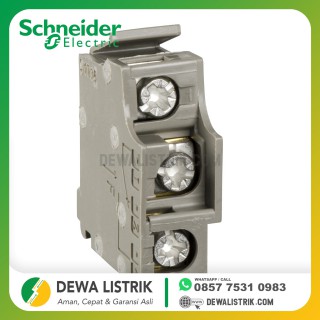

SCHNEIDER - SAKLAR BANTU OF.SD.SDE.SDV

OF
SD
SDE
SDV

Auxiliary contact

Compact Compact NS1600b...3200
Compact Compact NS630b...1600
Compact Compact NSX
Compact Compact NG
Compact Compact NR
Easypact EasyPact CVS
Compact Compact INS
Compact Compact INSE
Compact Compact INSJ
Compact Compact INV

C4
C5

1 NO/NC

Standard

Early-break
Early-make

Clip-on

6 A

Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 110 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 220/240 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 24 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 380/440 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 48 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 480 V
Utilisation category AC-12 : 6 A network: AC 50/60 Hz at 660/690 V
Utilisation category AC-15 : 0.1 A network: AC 50/60 Hz at 660/690 V
Utilisation category AC-15 : 1.5 A network: AC 50/60 Hz at 480 V
Utilisation category AC-15 : 2 A network: AC 50/60 Hz at 380/440 V
Utilisation category AC-15 : 4 A network: AC 50/60 Hz at 220/240 V
Utilisation category AC-15 : 5 A network: AC 50/60 Hz at 110 V
Utilisation category AC-15 : 6 A network: AC 50/60 Hz at 24 V
Utilisation category AC-15 : 6 A network: AC 50/60 Hz at 48 V
Utilisation category DC-12 : 0.3 A network: DC at 250 V
Utilisation category DC-12 : 0.6 A network: DC at 110 V
Utilisation category DC-12 : 2.5 A network: DC at 48 V
Utilisation category DC-12 : 6 A network: DC at 24 V
Utilisation category DC-14 : 0.03 A network: DC at 250 V
Utilisation category DC-14 : 0.05 A network: DC at 110 V
Utilisation category DC-14 : 0.2 A network: DC at 48 V
Utilisation category DC-14 : 1 A network: DC at 24 V

100 mA at 24 V

Spare part Compact NS630b...1600
Spare part Compact NS1600b...3200
