| range | TeSys |
|---|---|

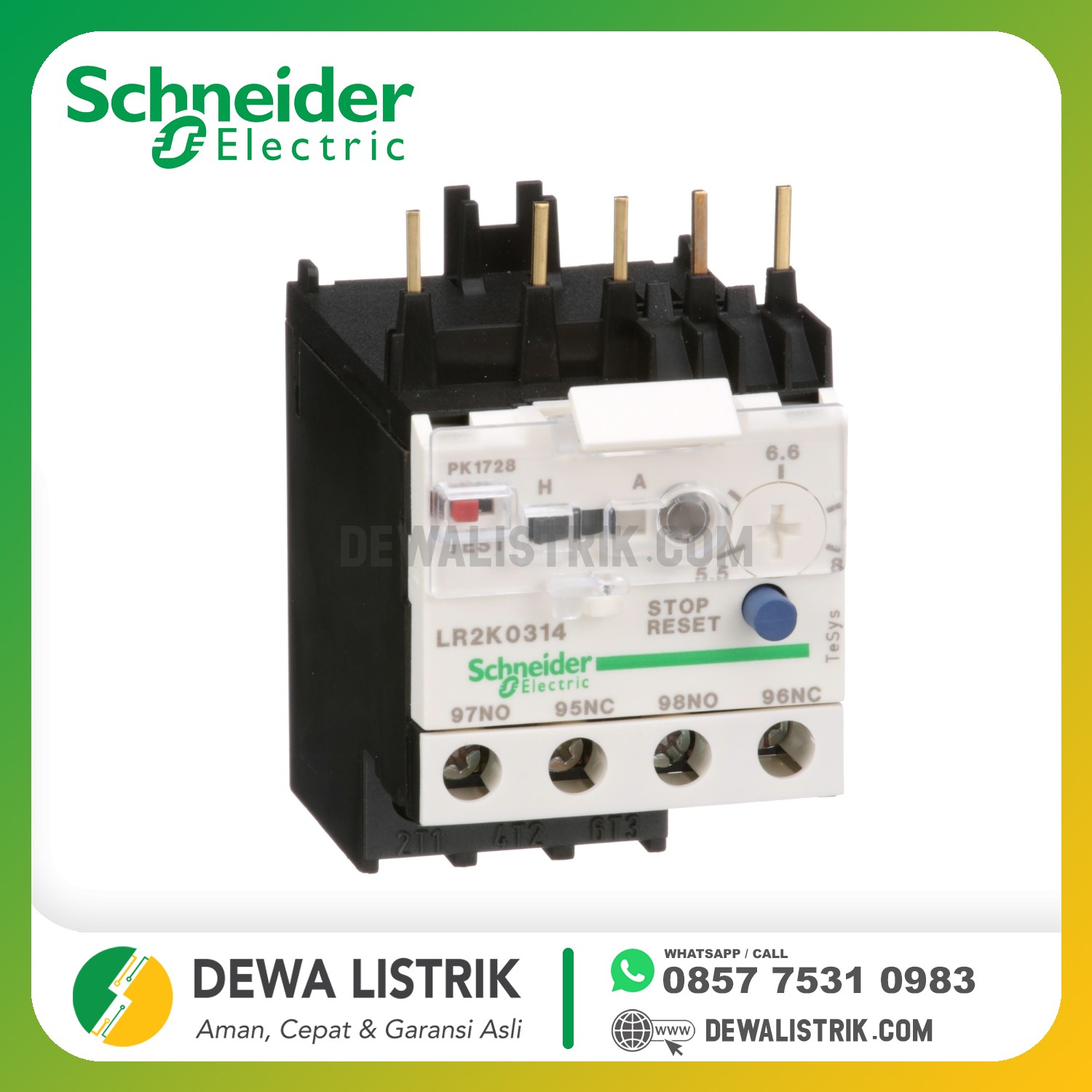

| product name | TeSys LRK |
| product or component type | Differential thermal overload relay |
| device short name | LR2K |
| relay application | Motor protection |
| product compatibility | LC7K LP4K LC1K LP1K |
| network type | AC DC |
| thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| thermal protection adjustment range | 10…14 A |
| [Ui] rated insulation voltage | Power circuit: 690 V conforming to BS 4941 Power circuit: 690 V conforming to IEC 60947 Power circuit: 750 V conforming to VDE 0110 group C Power circuit: 600 V conforming to CSA C22.2 No 14 |
| network frequency | <= 400 Hz |
|---|---|
| mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories |
| auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 6 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V for power circuit 690 V AC AC-15 for signalling circuit 250 V DC DC-13 for signalling circuit |
| associated fuse rating | 6 A gG for signalling circuit conforming to VDE 0660 6 A gG for signalling circuit conforming to IEC 60947 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| power dissipation per pole | 2 W |
| phase failure sensitivity | Yes conforming to IEC 60947-4-1 |
| local signalling | Trip indicator (yellow) |
| control type | Red push-button: trip test function Blue push-button: stop and manual reset selector switch: manual or automatic reset |
| connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid Screw clamp terminals 2 cable(s) 1.5…4 mm²solid Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| tightening torque | 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm |
| height | 58 mm |
| width | 45 mm |
| depth | 65 mm |
| net weight | 0.145 kg |
| standards | IEC 60947 BS 4941 VDE 0660 NF C 63-650 |
|---|---|
| product certifications | UL CSA |
| protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| IP degree of protection | IP2x conforming to IEC 60529 |
| ambient air temperature for operation | -20…55 °C without derating conforming to IEC 60947 -30…60 °C with derating conforming to IEC 60947 |
| ambient air temperature for storage | -40…70 °C |
| operating altitude | 2000 m without derating |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
| mechanical robustness | Shocks NO contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks NC contact: 10 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations NO contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations NC contact: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
