| range | TeSys |
|---|---|
| product or component type | Contactor |

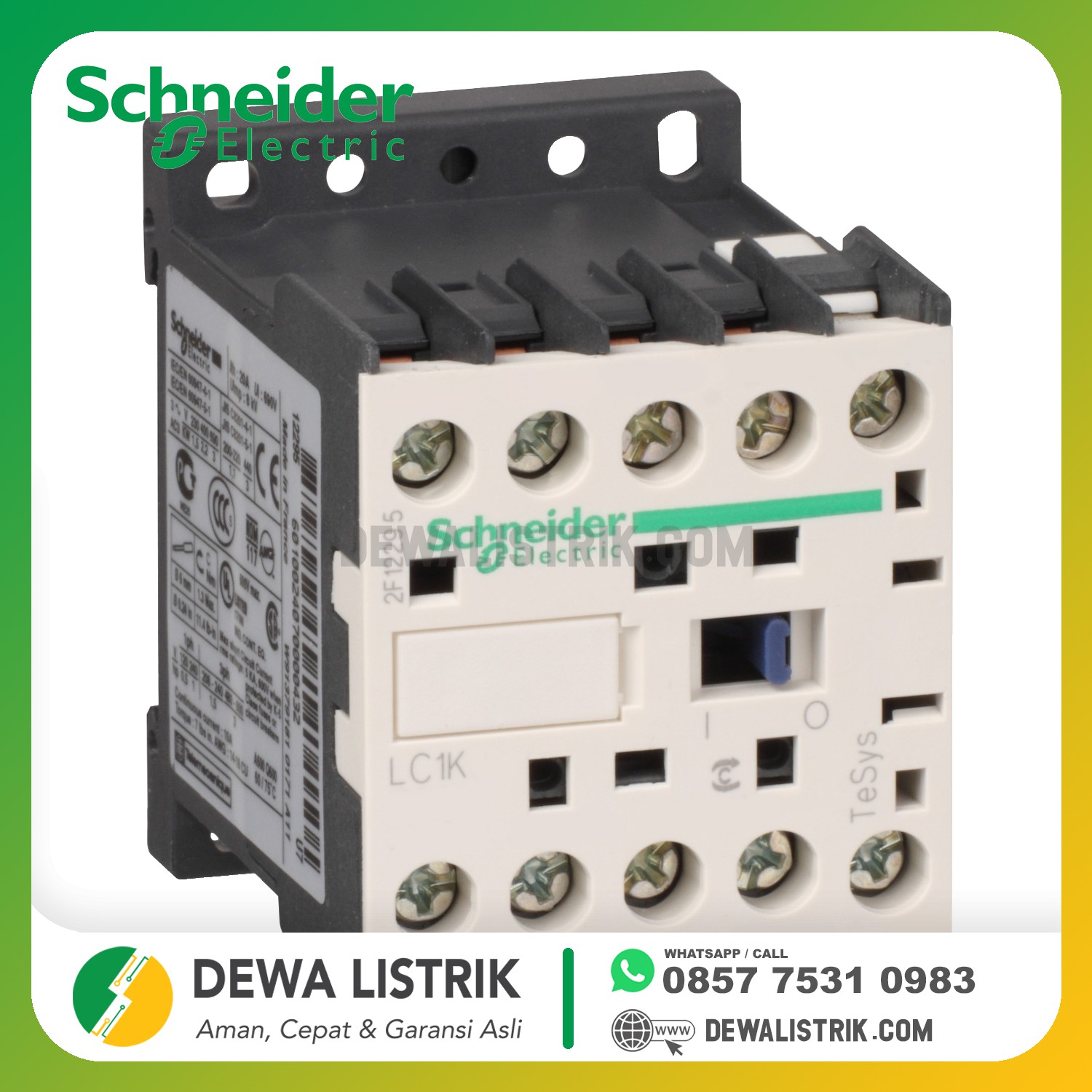

| product name | TeSys K |
| device application | Control |
| contactor application | Motor control Resistive load |
| utilisation category | AC-1 AC-3 AC-4 |
|---|---|
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ie] rated operational current | 9 A at <= 440 V AC AC-3 for power circuit 20 A (<= 50 °C) at <= 440 V AC AC-1 for power circuit 16 A (<= 70 °C) at 690 V AC AC-1 for power circuit |
| control circuit type | AC 50/60 Hz |
| [Uc] control circuit voltage | 220...230 V AC 50/60 Hz |
| motor power kW | 2.2 kW at 400 V AC 50/60 Hz AC-4 2.2 kW at 220...230 V AC 50/60 Hz AC-3 4 kW at 380...415 V AC 50/60 Hz AC-3 4 kW at 440 V AC 50/60 Hz AC-3 4 kW at 480 V AC 50/60 Hz AC-3 4 kW at 500...600 V AC 50/60 Hz AC-3 4 kW at 660...690 V AC 50/60 Hz AC-3 |
| auxiliary contact composition | 1 NO |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 20 A at <= 50 °C for power circuit 10 A at <= 50 °C for signalling circuit |
| Irms rated making capacity | 110 A AC for power circuit conforming to NF C 63-110 110 A AC for power circuit conforming to IEC 60947 110 A AC for signalling circuit conforming to IEC 60947 |
| rated breaking capacity | 110 A at 415 V conforming to IEC 60947 110 A at 440 V conforming to IEC 60947 80 A at 500 V conforming to IEC 60947 110 A at 220...230 V conforming to IEC 60947 110 A at 380...400 V conforming to IEC 60947 70 A at 660...690 V conforming to IEC 60947 |
| associated fuse rating | 25 A gG at <= 440 V for power circuit 25 A aM for power circuit 10 A gG for signalling circuit conforming to IEC 60947 10 A gG for signalling circuit conforming to VDE 0660 |
| average impedance | 3 mOhm at 50 Hz - Ith 20 A for power circuit |
| insulation resistance | > 10 MOhm for signalling circuit |
| inrush power in VA | 30 VA at 20 °C |
| hold-in power consumption in VA | 4.5 VA at 20 °C |
| heat dissipation | 1.3 W |
| control circuit voltage limits | 0.2...0.75 Uc at <= 50 °C drop-out 0.8...1.15 Uc at <= 50 °C operational |
| operating rate | 3600 cyc/h |
| auxiliary contacts type | Type instantaneous (1 NO) |
| signalling circuit frequency | <= 400 Hz |
| minimum switching current | 5 mA for signalling circuit |
| minimum switching voltage | 17 V for signalling circuit |
| operating time | 10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing |
| safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| non overlap distance | 0.5 mm |
| mechanical robustness | Shocks contactor closed, on X axis 10 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Y axis 15 Gn for 11 ms IEC 60068-2-27 Shocks contactor closed, on Z axis 15 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on X axis 6 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Y axis 10 Gn for 11 ms IEC 60068-2-27 Shocks contactor opened, on Z axis 10 Gn for 11 ms IEC 60068-2-27 Vibrations contactor closed 4 Gn, 5...300 Hz IEC 60068-2-6 Vibrations contactor opened 2 Gn, 5...300 Hz IEC 60068-2-6 |
| product certifications | CSA UL |
|---|---|
| protective treatment | TC conforming to IEC 60068 TC conforming to DIN 50016 |
| operating altitude | 2000 m without derating |
| flame retardance | V1 conforming to UL 94 Requirement 2 conforming to NF F 16-101 Requirement 2 conforming to NF F 16-102 |
