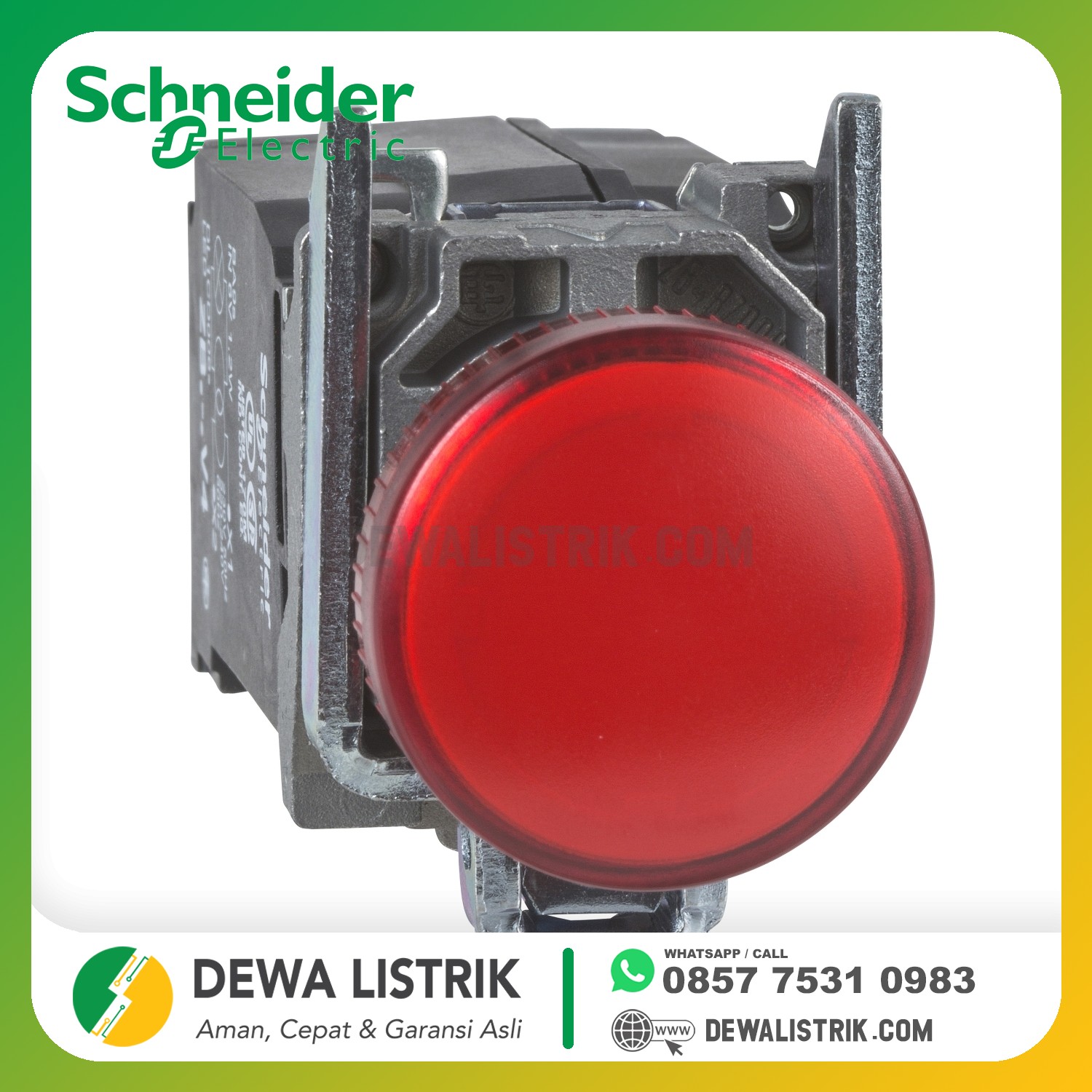

| range of product | Harmony XB4 |
|---|---|
| product or component type | Pilot light |
| device short name | XB4 |
| bezel material | Chromium plated metal |
| fixing collar material | Zamak |
| mounting diameter | 22 mm |
| head type | Standard |
| sale per indivisible quantity | 1 |
| shape of signaling unit head | Round |
| cap/operator or lens colour | Red |
| operator additional information | With plain lens |
| light source | Protected LED |
| bulb base | Integral LED |
| light source colour | Red |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| height | 47 mm |
|---|---|
| width | 30 mm |
| depth | 54 mm |
| terminals description ISO n°1 | (X1-X2)PL |
| net weight | 0.08 kg |
| resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage | EN 60947-1 4 kV |
| signalling type | Steady |
| current consumption | 14 mA |
| service life | 100000 h at rated voltage and 25 °C |
| surge withstand | 1 kV conforming to IEC 61000-4-5 |
| device presentation | Complete product |
| supply voltage limits | 195…264 V AC |
| protective treatment | TH |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -40…70 °C |
| electrical shock protection class | Class I conforming to IEC 60536 |
| IP degree of protection | IP66 conforming to IEC 60529 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 13 NEMA 4X |
| IK degree of protection | IK06 conforming to IEC 50102 |
| standards | JIS C8201-5-1 CSA C22.2 No 14 UL 508 EN/IEC 60947-5-1 EN/IEC 60947-5-5 EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C8201-1 |
| product certifications | CSA UL listed |
| vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| resistance to fast transients | 2 kV conforming to IEC 61000-4-4 |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| resistance to electrostatic discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| electromagnetic emission | Class B conforming to IEC 55011 |
