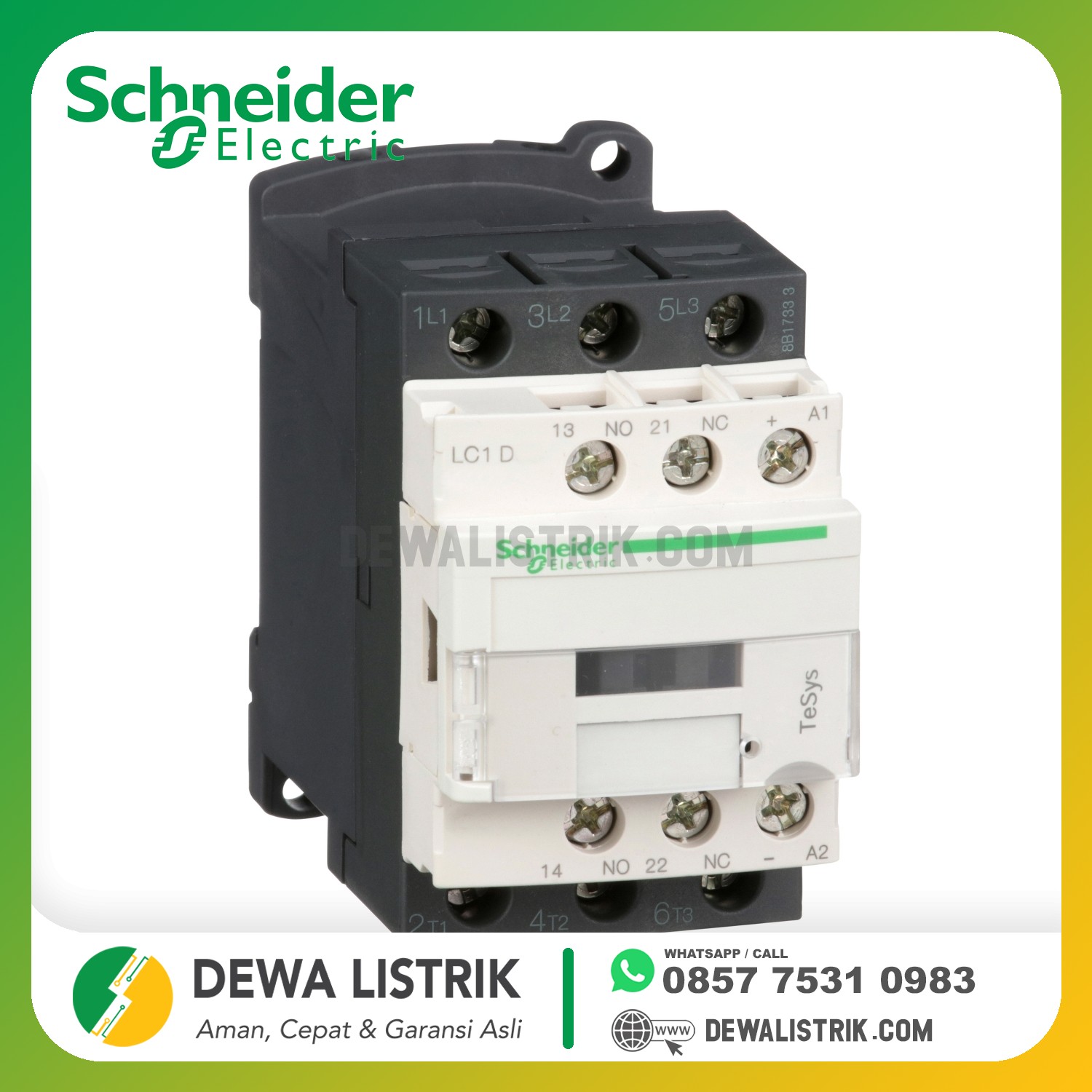

| coil technology | With integral suppression device |
|---|---|
| control circuit voltage limits | 0.1...0.25 Uc (-40…70 °C):drop-out DC 0.7...1.25 Uc (-40…60 °C):operational DC 1...1.25 Uc (60…70 °C):operational DC |
| time constant | 28 ms |
| inrush power in W | 5.4 W (at 20 °C) |
| hold-in power consumption in W | 5.4 W at 20 °C |
| auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| signalling circuit frequency | 25...400 Hz |
| minimum switching current | 5 mA for signalling circuit |
| minimum switching voltage | 17 V for signalling circuit |
| non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| insulation resistance | > 10 MOhm for signalling circuit |
| contact compatibility | M4 |
| compatibility code | LC1D |
| motor power range | 4…6 kW at 200…240 V 3 phases 7…11 kW at 380…440 V 3 phases 7…11 kW at 480…500 V 3 phases |
| motor starter type | Direct on-line contactor |
| contactor coil voltage | 24 V DC standard |
