| range | EasyLogic |
|---|---|

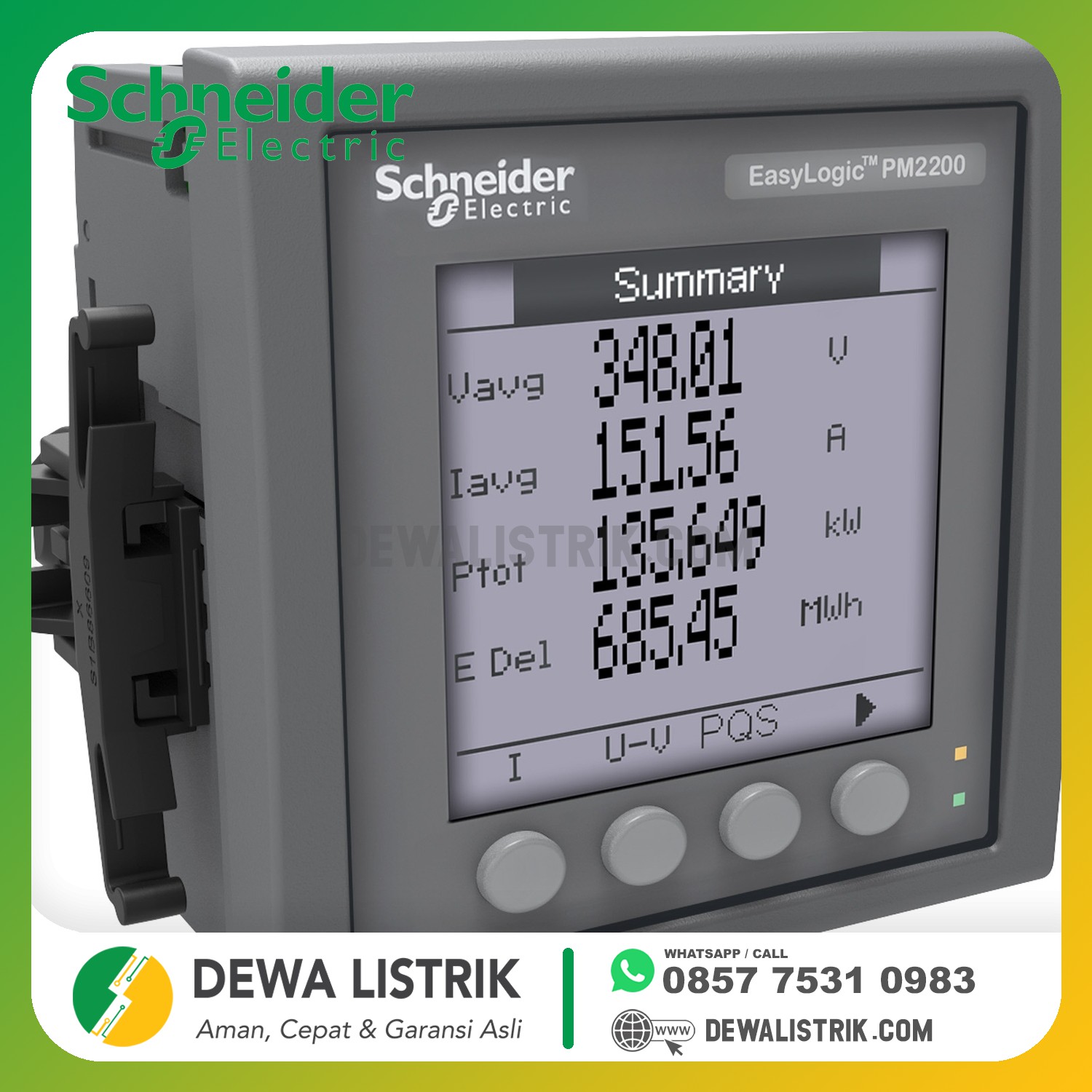

| product name | EasyLogic PM2200 |
| device short name | PM2220 |
| product or component type | Power meter |
| device application | Power monitoring Sub billing |
|---|---|
| power quality analysis | Up to the 15th harmonic Total harmonic distortion |
| type of measurement | Apparent power (min/max, total) Active and reactive power (min/max, total) Current (min/max, avg) Voltage (min/max, avg) Frequency (min/max, avg) Total current harmonic distortion THD (I) (per phase) Total voltage harmonic distortion THD (U) (per phase) Power factor (min/max, avg) Apparent energy (total) Active and reactive energy (total) |
| metering type | Active power P, P1, P2, P3 Apparent power S, S1, S2, S3 Peak demand currents Reactive power Q, Q1, Q2, Q3 Unbalance current Active, reactive, apparent energy (signed, four quadrant) Calculated neutral current Demand power P, Q, S Peak demand power PM, QM, SM Current I, I1, I2, I3 Voltage U, U21, U32, U13, V, V1, V2, V3 |
| accuracy class | Class 1 (active energy according to IEC 62053-21) Class 1 (reactive energy according to IEC 62053-24) Class 5 (harmonic distorsion (I THD & U THD) |
| measurement accuracy | +/- 0.05 % frequency +/- 1 % reactive energy +/- 0.5 % current +/- 0.5 % voltage +/- 0.01 power factor +/- 1 % active power +/- 1 % apparent power +/- 1 % active energy |
| measurement current | 5...6000 mA |
| measurement voltage | 35...480 V AC 50/60 Hz between phases 20...277 V AC 50/60 Hz between phase and neutral 480...999000 V AC 50/60 Hz with external VT |
| frequency measurement range | 45...65 Hz |
| [Us] rated supply voltage | 44...277 V AC +/- 10 % (45...65 Hz) 44...277 V DC +/- 10 % |
| network frequency | 50 Hz 60 Hz |
| ride-through time | 100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical |
| [In] rated current | 1 A 5 A |
| power consumption in VA | <= 6 VA at 277 V AC |
| power consumption in W | <= 3.3 W power lines (AC) <= 2 W at 277 V power lines (DC) |
| input impedance | Current (impedance <= 0.3 mOhm) Voltage (impedance > 5 MOhm) |
| tamperproof of settings | Protected by access code |
| display type | Backlit LCD |
| display colour | Monochrome |
| display resolution | 128 x 128 pixels |
| Demand intervals | Configurable from 1 to 60 min |
| information displayed | Voltage Current Frequency Energy consumption Harmonic distortion Demand current past value Demand current present value Demand power past value Demand power present value Power factor Active power Apparent power Reactive power Unbalanced in % Harmonic amplitude |
| control type | 4 x button |
| local signalling | Green LED : module operation and integrated communication Red LED : output signal 1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| number of inputs | 2 pulse |
| number of outputs | 0 |
| communication port protocol | Modbus RTU 2 wires, : 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps, even/odd or none, insulation: 2500 V |
| communication port support | Screw terminal block : RS485 |
| data recording | Time stamping Min/max for 8 parameters |
| function available | Real time clock |
| sampling rate | 64 samples/cycle |
| cybersecurity | Enable/disable communication ports |
| communication service | Remote monitoring |
| language | Chinese English French German Portuguese Russian Spanish |
| product certifications | CE conforming to IEC 61010-1 CULus conforming to UL 61010-1 EAC CULus conforming to CSA C22.2 No 61010-1 RCM C-Tick |
| mounting mode | Clip-on |
| mounting position | Vertical |
| mounting support | Framework |
| provided equipment | Installation guide 1 |
| measurement category | Category III up to 480 V Category II up to 480...600 V |
| electrical insulation class | Class II Double insulation |
| flame retardance | V-0 conforming to UL 94 |
| connections - terminals | Current transformer : bottom screw connection x 6 Voltage inputs : top screw connection x 4 |
| material | Polycarbonate |
| width | 96 mm |
| depth | 76.09 mm total 61.64 mm embedded |
| height | 96 mm |
| product weight | 300 g |
| compatibility code | PM2220 |
| service life | 7 yr |
|---|---|
| IP degree of protection | IP30 (body) conforming to IEC 60529 IP54 (front) conforming to IEC 60529 |
| relative humidity | 5...95 % 50 °C |
| pollution degree | 2 |
| ambient air temperature for operation | -10...60 °C |
| ambient air temperature for storage | -25...70 °C |
| operating altitude | <= 2000 m |
| electromagnetic compatibility | Electrostatic discharge conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Emission tests conforming to FCC part 15 class A Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| overvoltage category | III |
