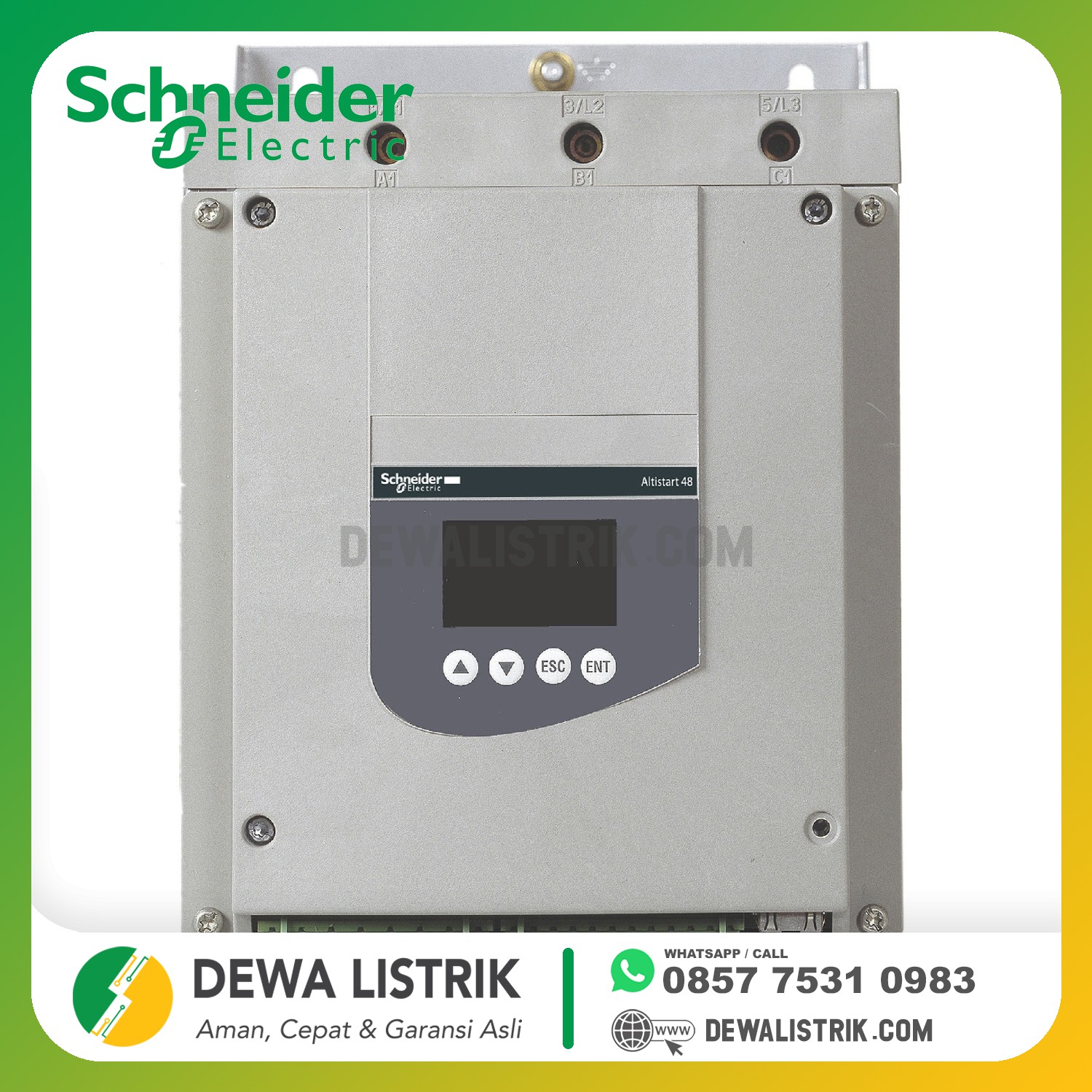

SCHNEIDER - ATS48 22 KW 47A ALTI START TEGANGAN 230-415 VAC, STD

Altistart 48

Soft starter

Asynchronous motors

Heavy duty industry and pumps

ATS48

230...415 V (- 15...10 %)

9 kW at 230 V (connection in the motor supply line) for severe applications
11 kW at 230 V (connection in the motor supply line) for standard applications
18.5 kW at 230 V (connection to the motor delta terminals) for severe applications
18.5 kW at 400 V (connection in the motor supply line) for severe applications
22 kW at 230 V (connection to the motor delta terminals) for standard applications
22 kW at 400 V (connection in the motor supply line) for standard applications
30 kW at 400 V (connection to the motor delta terminals) for severe applications
45 kW at 400 V (connection to the motor delta terminals) for standard applications

For severe applications 116 W
For standard applications 142 W

AC-53A

Start with torque control (current limited to 5 In)

47 A (connection in the motor supply line) for severe applications
81 A (connection to the motor delta terminals) for severe applications
81 A (connection to the motor delta terminals) for standard applications
47 A (connection in the motor supply line) for standard applications

IP20

With heat sink

External bypass (optional)

195...456 V

50...60 Hz (- 5...5 %)

47.5...63 Hz

In the motor supply line
To the motor delta terminals

42 A

220 - 15 % to 415 + 10 %, 50/60 Hz

30 W

2

(LO1) logic output 0 V common configurable
(LO2) logic output 0 V common configurable
(R1) relay outputs fault relay NO
(R2) relay outputs end of starting relay NO
(R3) relay outputs motor powered NO

+/- 5 %

Relay outputs 10 mA at 6 V DC

Logic output 0.2 A at 30 V DC
Relay outputs 1.8 A at 230 V AC inductive load, cos phi = 0.5, L/R = 20 ms
Relay outputs 1.8 A at 30 V DC inductive load, cos phi = 0.5, L/R = 20 ms

5

PTC, 750 Ohm at 25 °C
(Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm

24 V (<= 30 V)

Positive logic (Stop, Run, LI3, LI4) state 0 < 5 V and <= 2 mA, state 1 > 11 V and >= 5 mA

Adjustable 0.4...1.3 Icl

(AO) current output 0-20 mA or 4-20 mA <= 500 Ohm

Modbus

1 RJ45

Serial

RS485 multidrop

4800, 9600 or 19200 bps

31

Phase failure (line)
Thermal protection (motor)
Thermal protection (starter)

CE

Forced convection

Vertical +/- 10 degree

275 mm

160 mm

190 mm

4.9 kg

7...11 kW at 200...240 V 3 phases
15...25 kW at 380...440 V 3 phases
15...25 kW at 200...240 V 3 phases
30...50 kW at 380...440 V 3 phases

Soft starter

Conducted and radiated emissions conforming to IEC 60947-4-2 level A
Conducted and radiated emissions conforming to IEC 60947-4-2 level B
Damped oscillating waves conforming to IEC 61000-4-12 level 3
Electrostatic discharge conforming to IEC 61000-4-2 level 3
Immunity to electrical transients conforming to IEC 61000-4-4 level 4
Immunity to radiated radio-electrical interference conforming to IEC 61000-4-3 level 3
Voltage/current impulse conforming to IEC 61000-4-5 level 3

EN/IEC 60947-4-2

CCC
CSA
C-Tick
DNV
GOST
NOM 117
SEPRO
TCF
UL

1 gn (f = 13...200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm (f = 2...13 Hz) conforming to EN/IEC 60068-2-6

15 gn for 11 ms conforming to EN/IEC 60068-2-27

52 dB

Level 3 conforming to IEC 60664-1

0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

40...60 °C with current derating of 2 % per °C
-10...40 °C without derating

-25...70 °C

<= 1000 m without derating
> 1000...2000 m with current derating of 2.2 % per additional 100 m
