| range | Acti 9 |
|---|---|

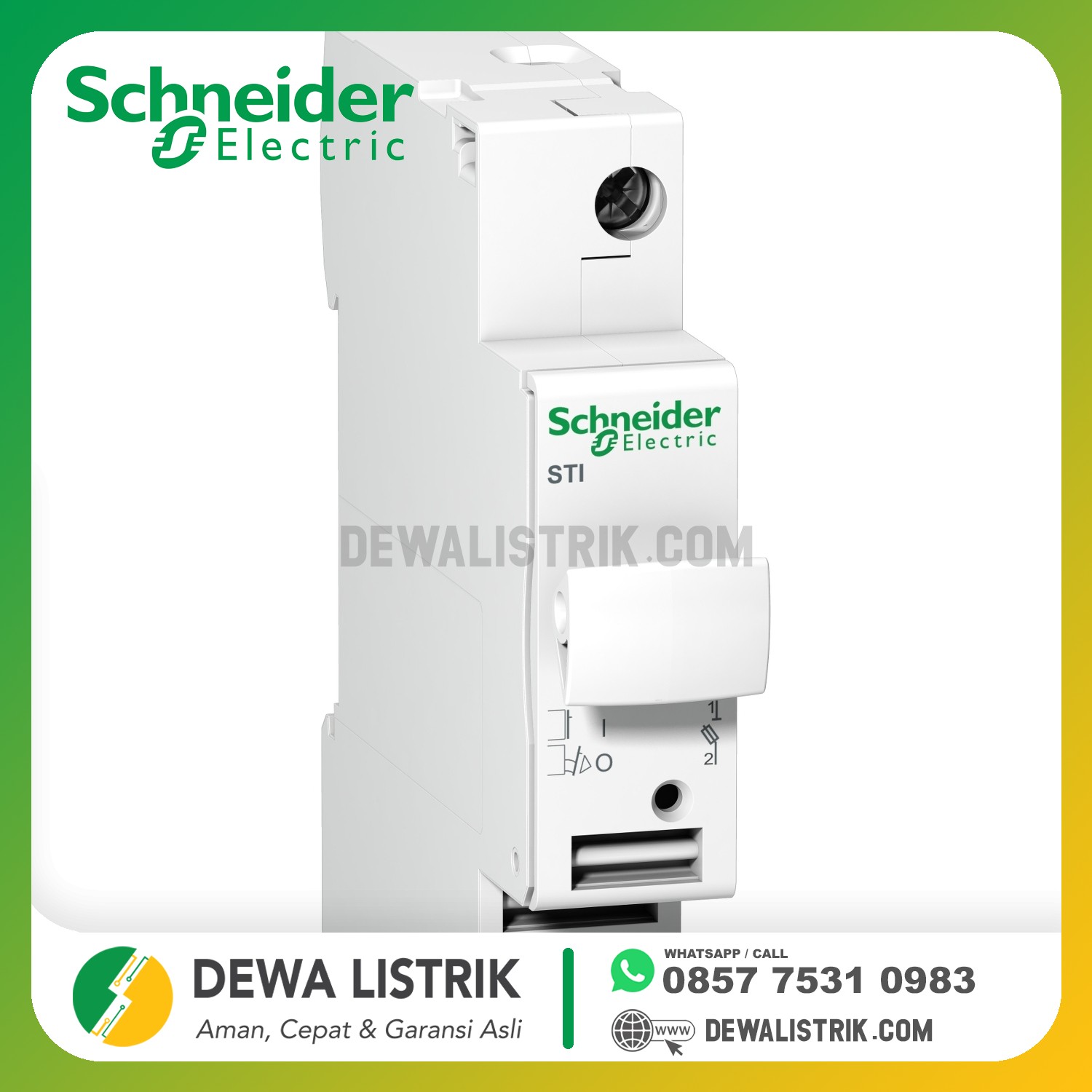

| product name | Acti 9 STI |
| product or component type | Fuse-disconnector |
| device short name | STI |
| poles description | 1P |
| [In] rated current | 2 A 4 A 6 A 10 A |
|---|---|
| fuse curve | AM GG |
| fuse size | 8.5 x 31.5 mm |
| [Ue] rated operational voltage | 400 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| height | 81 mm |
| width | 18 mm |
| depth | 75 mm |
| colour | White |
| connections - terminals | Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible |
| wire stripping length | 12 mm |
| tightening torque | 2 N.m |
| standards | IEC EN 60947-3 IEC 60269-1/2 |
|---|---|
| IP degree of protection | IP20 |
| pollution degree | 3 |
| ambient air temperature for operation | -20…60 °C |
| ambient air temperature for storage | -40…80 °C |
