| range | Acti 9 |
|---|---|

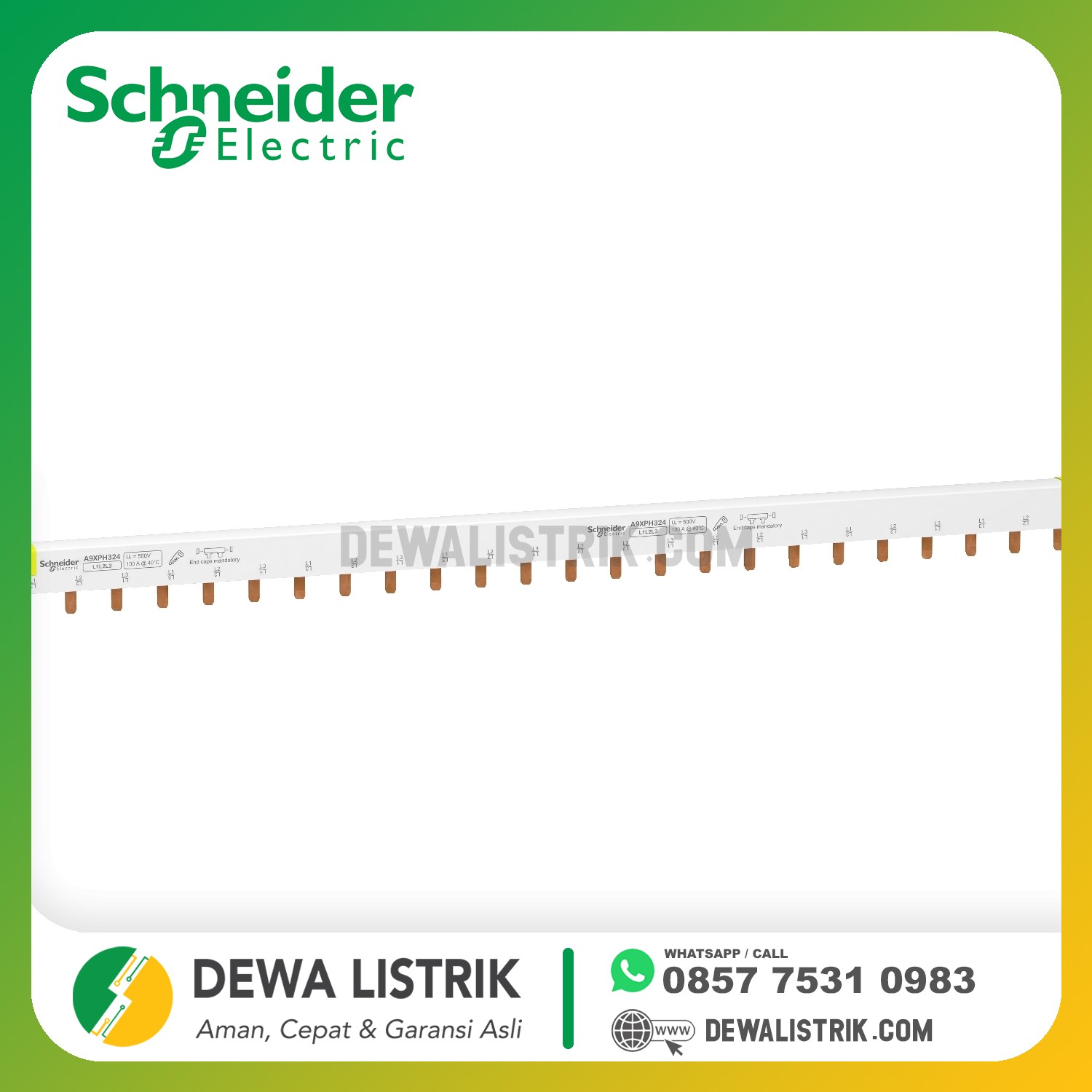

| product or component type | Comb busbar |
| accessory / separate part category | Connection accessory |
| lines description | 3L |
| Length in 18 mm modules | 24 |
| number of ways | 8 ways 3 L |
|---|---|
| poles configuration for 1 way | 1 x 3P |
| connection pitch | 18 mm |
| connector type | Tooth |
| distance between way | 54 mm |
| marking | L1 L2 L3 |
| insulation | Insulated |
| device presentation | Cuttable |
| [Ie] rated operational current | 100 A at 40 °C |
| [Ue] rated operational voltage | 415 V AC |
| [Ui] rated insulation voltage | 500 V AC conforming to IEC 61439-2 |
| mounting mode | Horizontal |
| mounting location | Top or bottom on tunnel type terminals Top or bottom on double terminal |
| 9 mm pitches | 48 |
| width | 430 mm |
| colour | White (RAL 9003) |
| range compatibility | Acti 9 iC60 Acti 9 iK60 Acti 9 iID Acti 9 iID K Acti 9 iSW Acti 9 iSW-NA Multi 9 C60 |
