| range | TeSys |
|---|---|
| product name | TeSys F |
| product or component type | Contactor |

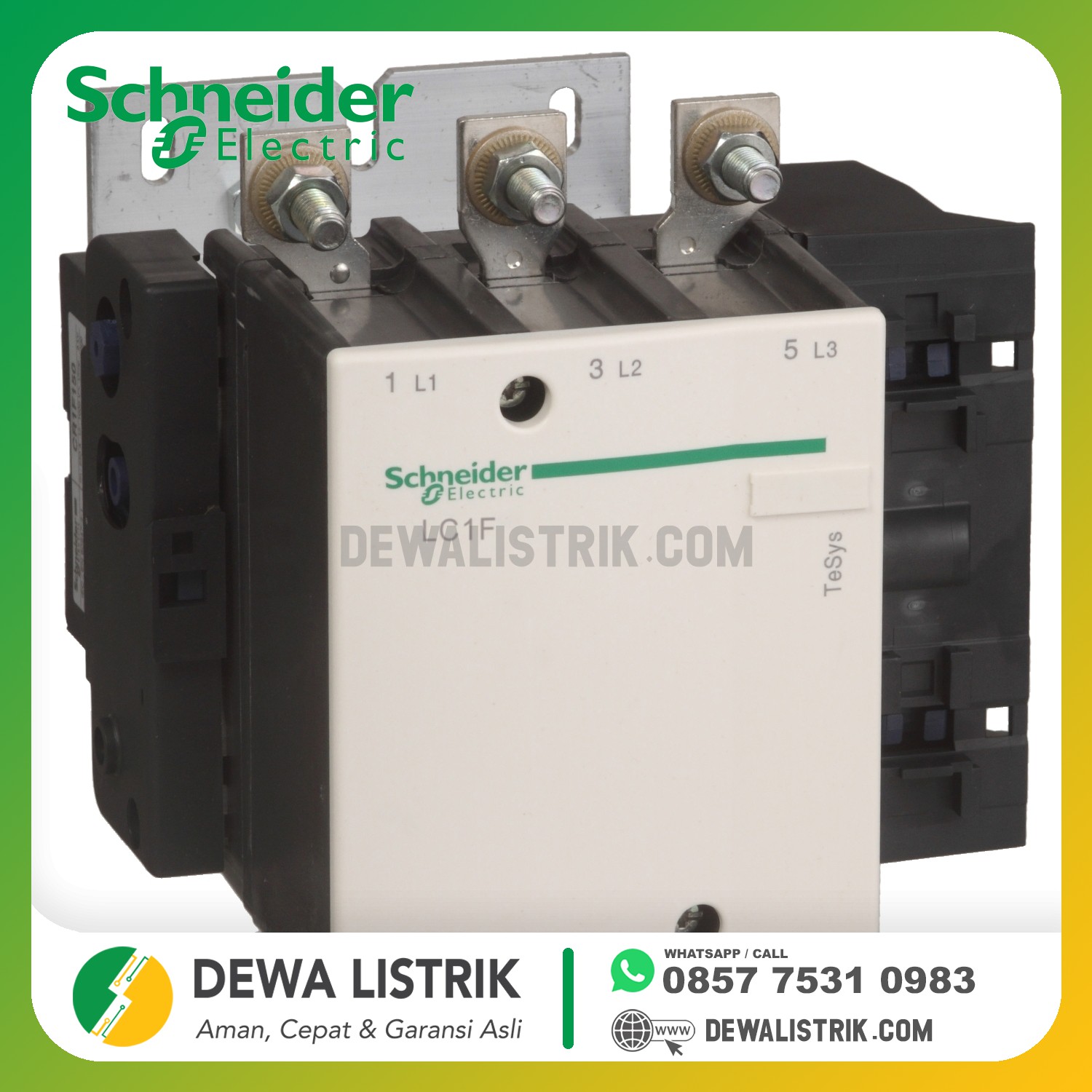

| device short name | LC1F |
| contactor application | Motor control Resistive load |
| utilisation category | AC-1 AC-3 AC-4 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 250 A (<= 40 °C) at <= 440 V AC-1 150 A (<= 55 °C) at <= 440 V AC-3 |
| motor power kW | 75 kW at 380...400 V AC 50/60 Hz AC-3 90 kW at 500 V AC 50/60 Hz AC-3 100 kW at 660...690 V AC 50/60 Hz AC-3 22 kW at 400 V AC 50/60 Hz AC-4 80 kW at 415 V AC 50/60 Hz AC-3 80 kW at 440 V AC 50/60 Hz AC-3 40 kW at 220...240 V AC 50/60 Hz AC-3 |
| [Uimp] rated impulse withstand voltage | 8 kV |
|---|---|
| overvoltage category | III |
| [Ith] conventional free air thermal current | 250 A at <= 40 °C |
| Irms rated making capacity | 1500 A conforming to IEC 60947-4-1 |
| rated breaking capacity | 1200 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 1200 A <= 40 °C 10 s 700 A <= 40 °C 30 s 600 A <= 40 °C 1 min 450 A <= 40 °C 3 min 350 A <= 40 °C 10 min |
| associated fuse rating | 160 A aM at <= 440 V 250 A gG at <= 440 V |
| average impedance | 0.35 mOhm at 50 Hz - Ith 250 A |
| [Ui] rated insulation voltage | 1000 V conforming to IEC 60947-4-1 1500 V conforming to VDE 0110 group C |
| power dissipation per pole | 22 W AC-1 8 W AC-3 |
| mounting support | Plate |
| standards | EN 60947-1 EN 60947-4-1 IEC 60947-1 IEC 60947-4-1 JIS C8201-4-1 |
| product certifications | ABS BV CSA DNV LROS (Lloyds register of shipping) RINA RMRoS UL CB |
| connections - terminals | Power circuit : connector 1 cable(s) 120 mm² Power circuit : lugs-ring terminals 1 cable(s) 120 mm² Power circuit : bolted connection Power circuit : bar 2 x (25 x 3 mm) |
| tightening torque | Power circuit : 18 N.m |
| IP degree of protection | IP2x front face with shrouds (ordered separately) conforming to IEC 60529 IP2x front face with shrouds (ordered separately) conforming to VDE 0106 |
|---|---|
| protective treatment | TH |
| ambient air temperature for operation | -5...55 °C |
| ambient air temperature for storage | -60...80 °C |
| permissible ambient air temperature around the device | -40...70 °C |
| operating altitude | 3000 m without derating |
| mechanical robustness | Vibrations resistance contactor open 2 Gn, 5...300 Hz Vibrations resistance contactor closed 6 Gn, 5...300 Hz Shocks resistance contactor closed 15 Gn for 1/2 sine wave (11 ms) Shocks resistance contactor open 9 Gn for 1/2 sine wave (11 ms) |
| height | 170 mm |
| width | 163.5 mm |
| depth | 171 mm |
| product weight | 3.83 kg |
